KAWA Homage Screw Fixing

RIDGE CAPPING

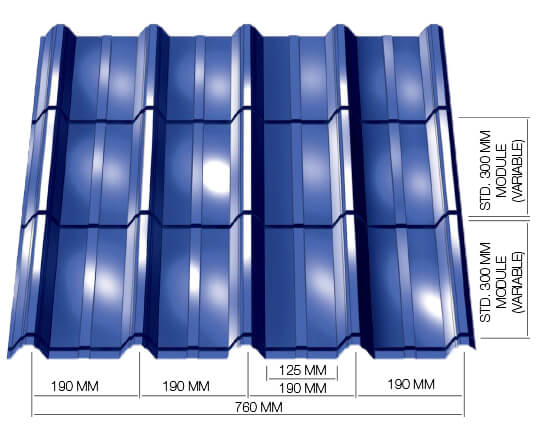

KAWA HOMAGE ROOFING MODULE 300MM C/C

HIP CAPPING

GALVANISED CHICKEN WIRE MESH

STEEL PURLIN OR TIMBER BATTENS @ MAXIMUM 600MM C/C (BY OTHERS)

TRUSS (BY OTHERS)

HARDWOOD FASCIA

ALUMINIUM FOIL

INSULATION WOOL BLANKET

TYPICAL KAWA HOMAGE ASSEMBLY.

RIDGE CAPPING

KAWA HOMAGE ROOFING MODULE 300MM C/C

HIP CAPPING

GALVANISED CHICKEN WIRE MESH

STEEL PURLIN OR TIMBER BATTENS @ MAXIMUM 600MM C/C (BY OTHERS)

TRUSS (BY OTHERS)

HARDWOOD FASCIA

ALUMINIUM FOIL

INSULATION WOOL BLANKET

TYPICAL KAWA HOMAGE ASSEMBLY.

Installation Method

Play Video
  • The long length sheets eliminate the need for multiple end laps. This eliminates any potential leaks through the roof.
  • Shorter installation time is achieved due to the long length sheets, resulting in significant reduction in labour costs.
  • The lightweight steel sheets require only a light supporting structure or less supporting members, thus reducing the overall building cost.
  • With custom cut long length sheets, there is no wastage at end laps.
  • The rugged corrugations of the KAWA HOMAGE profile make the roof distinctively attractive.

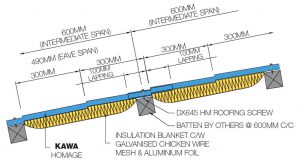

PROFILE AT END LAP JOINT



PROFILE AT THE EAVE

PROFILE AT THE RIDGE

  • The long length sheets eliminate the need for multiple end laps. This eliminates any potential leaks through the roof.
  • Shorter installation time is achieved due to the long length sheets, resulting in significant reduction in labour costs.
  • The lightweight steel sheets require only a light supporting structure or less supporting members, thus reducing the overall building cost.
  • With custom cut long length sheets, there is no wastage at end laps.
  • The rugged corrugations of the KAWA HOMAGE profile make the roof distinctively attractive.

PROFILE AT END LAP JOINT



PROFILE AT THE EAVE

PROFILE AT THE RIDGE

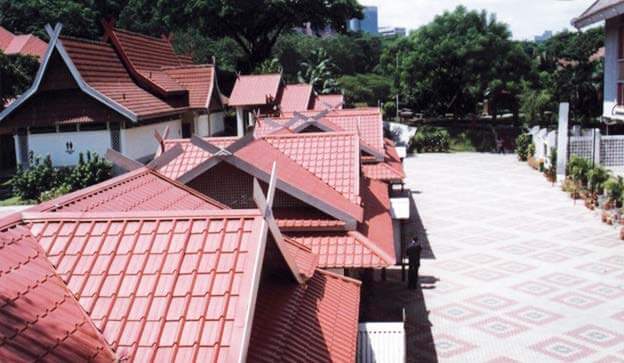

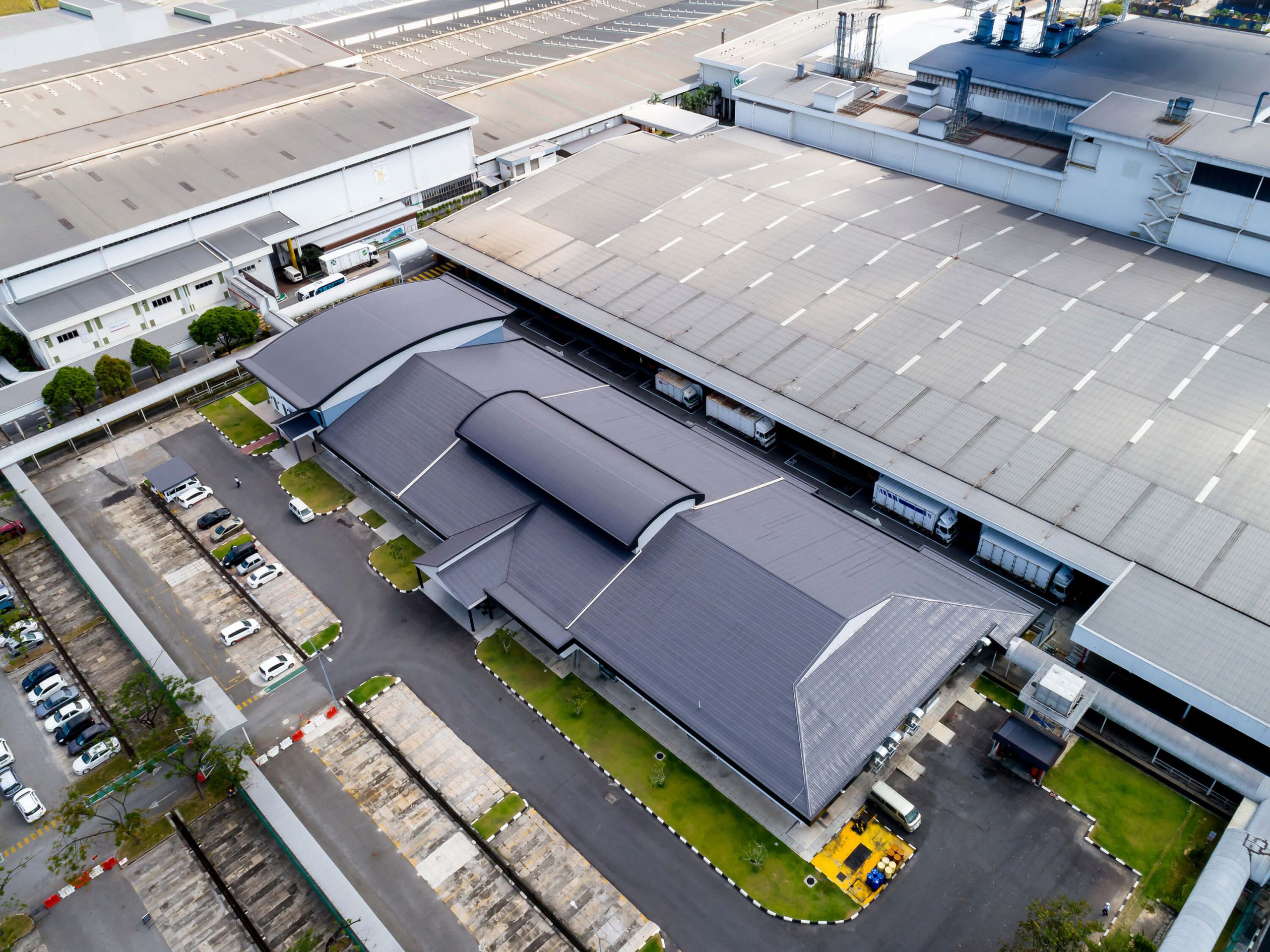

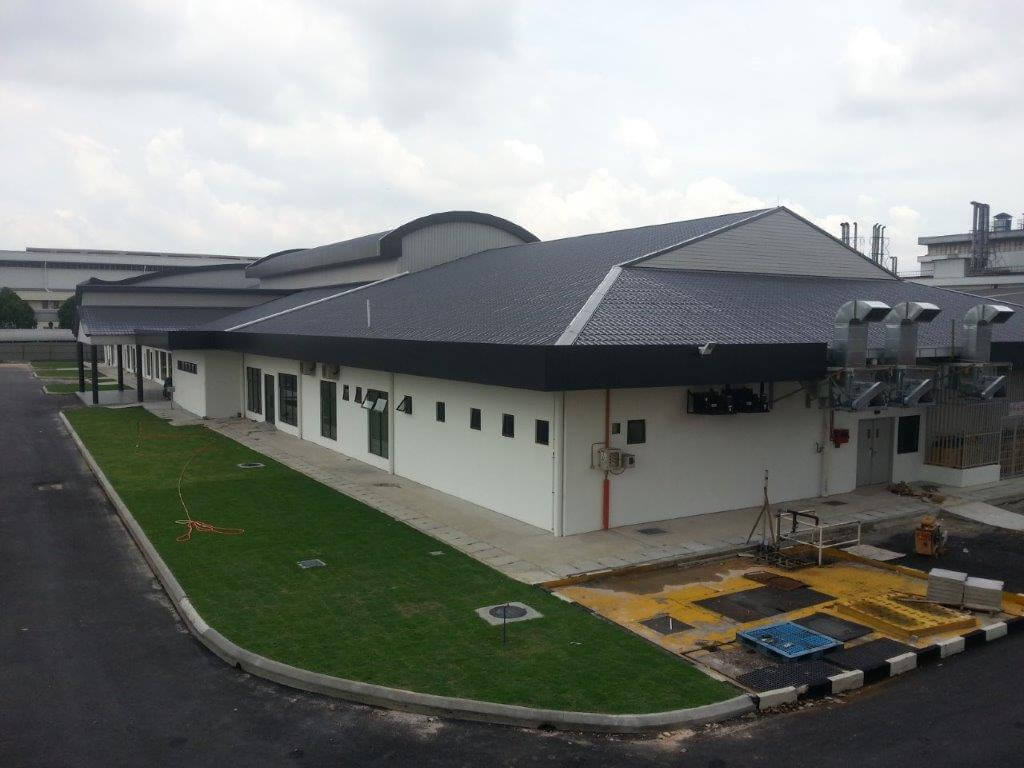

Projects Reference
